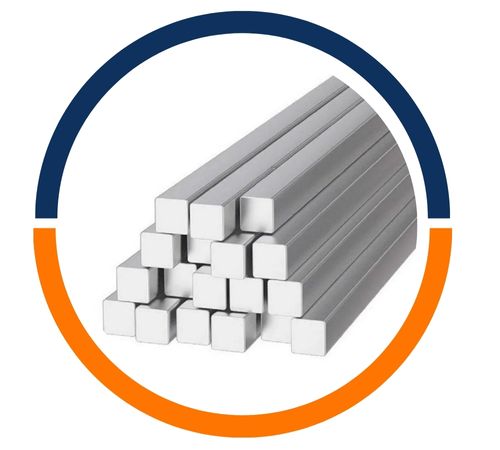

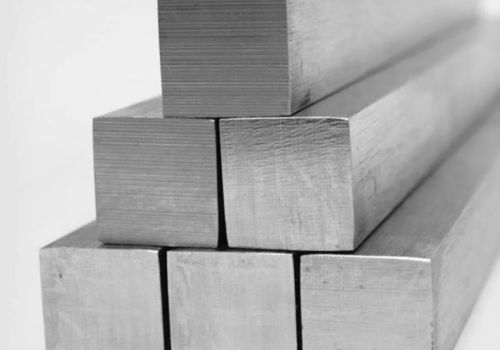

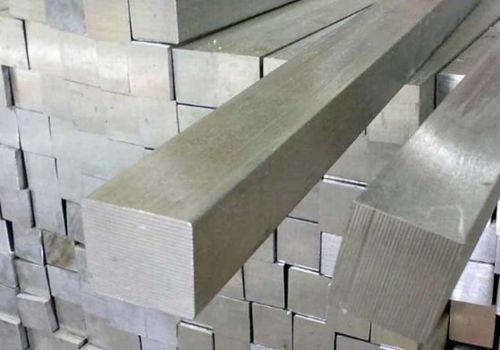

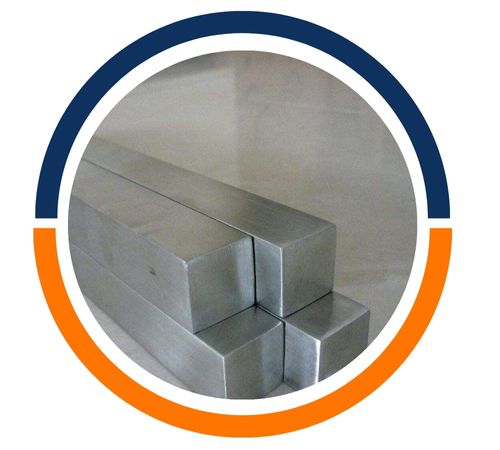

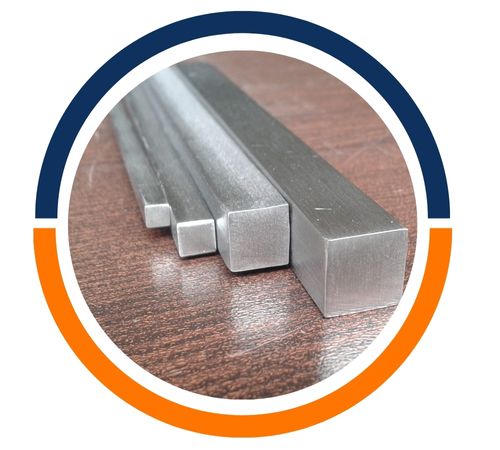

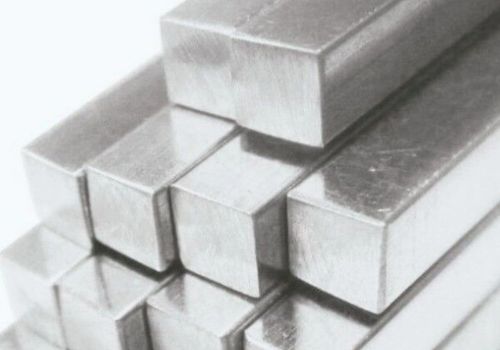

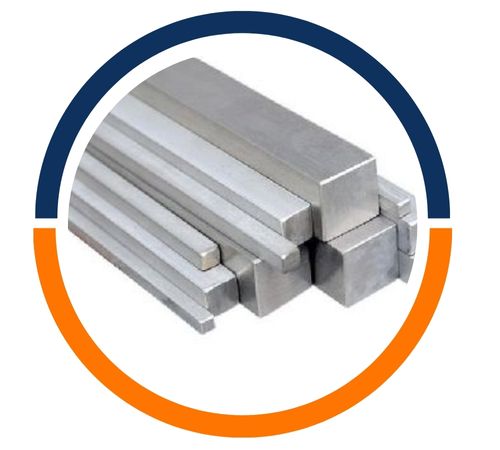

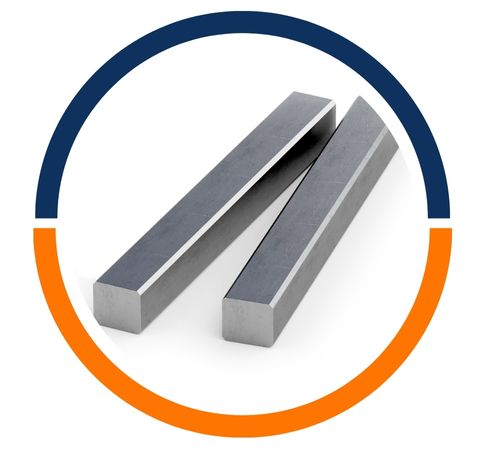

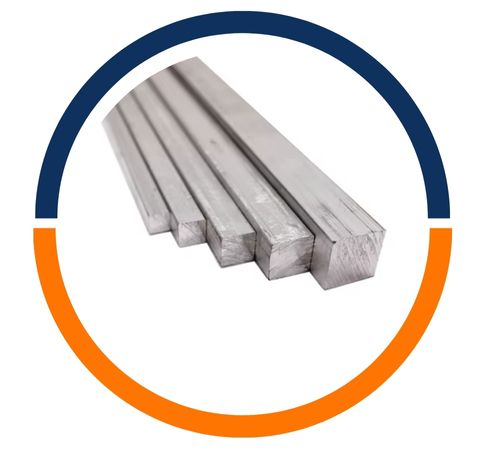

Liza Aluminium, a well-respected manufacturer and supplier located in Manila, Philippines, specializes in top-notch Aluminium 5052 Square Bars that are crafted for outstanding performance in a variety of industrial settings. These bars are made using cutting-edge extrusion and finishing techniques, ensuring they boast excellent dimensional accuracy, a smooth surface, and impressive durability. The Aluminium 5052 Square Bars are particularly prized for their resistance to corrosion, especially in marine and chemical environments, along with their great weldability and moderate-to-high strength. Liza Aluminium is committed to meeting international standards with every product, delivering reliable solutions for the construction, marine, automotive, and general engineering sectors.
These Aluminium 5052 Square Bars mainly consist of aluminium with magnesium (2.2–2.8%) as the primary alloying element, along with trace amounts of chromium (0.15–0.35%), iron, silicon, and manganese. This alloy isn’t heat-treatable but gains strength through cold working, striking a balance between strength, ductility, and resistance to fatigue and corrosion. Typical mechanical properties include a tensile strength ranging from 210 to 280 MPa, yield strength between 90 and 200 MPa, and excellent elongation depending on the temper. These characteristics make 5052 a fantastic choice for applications that require both durability and formability.
Specification : ASTM B 221 ASME SB 221, B211, B565, B316 1100, AMS 4102
Standard : ASTM, BS and all International Standards
Temper : O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length : 100 mm To 3000 mm Long & Above
Size : 5 mm To 500 mm
| Aluminium 5052 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.15 – 0.40 | 0.10 – 0.25 | 2.20 – 2.80 | 0.01 – 0.10 | 0.01 – 0.10 | 0.01 – 0.10 | 0.020 – 0.030 | 97.2 |
| Mechanical Properties – AA 5052 | ||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 5052 | O | 171 | 213 | 16 | 18 | 19 |
| H12 | 213 | 261 | 5 | 7 | 9 | |
| H14 | 233 | 281 | 4 | 6 | 7 | |
| H16 | 254 | 302 | 3 | 4 | 4 | |
| H18 | 268 | – | 3 | 4 | 4 | |
Density : 2.68 g/cm3
Melting point : 607.2 – 649 °C (1125 – 1200 °F)
Tensile Strength : 228 MPa – 33000 psi
| STANDARD | UNS | WERKSTOFF NR. | European Standard | BS (OLD) | ISO | USA (AA) | GERMANY (DIN) |
| Aluminium 5052 | A95052 | 3.3523 | AW-AlMg2,5 | AG2,5C | AlMg2,5 | 5052 | AlMg2,5 |
Liza Aluminium based in Manila, Philippines is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminum 5052 Square Bars to meet specific project needs. Our team at Liza Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@lizaaluminium.com
Aluminium 5052 Square Bars find their place in industries that need lightweight yet robust materials. They are frequently used in marine structures, boat fittings, pressure vessels, and fuel tanks due to their impressive resistance to saltwater corrosion. Moreover, they are perfect for architectural frameworks, transportation components, electrical enclosures, and sheet metal parts. Their exceptional workability and machinability also make them ideal for precision-engineered products. With their unique blend of strength, flexibility, and corrosion resistance, Aluminium 5052 Square Bars are a versatile option for a wide array of industrial applications.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
