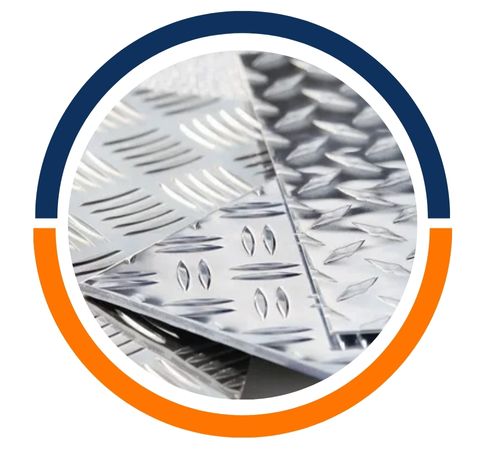

Liza Aluminium, located in Manila, Philippines, is a trusted manufacturer and supplier of high-quality Aluminium 1050 Chequered Plates. These plates are well known for their high purity, corrosion resistance, and attractive raised pattern that provides extra grip and strength. Liza Aluminium ensures each plate is produced with precision using advanced technology and strict quality control measures. The company focuses on delivering lightweight, durable, and versatile aluminium products suitable for industrial, architectural, and transportation purposes, earning a reputation for reliability and excellence in the Philippine aluminium industry.
Aluminium 1050 Chequered Plates contain a minimum of 99.5% pure aluminium, along with small amounts of silicon, iron, copper, manganese, magnesium, zinc, and titanium. This alloy provides excellent corrosion resistance, good ductility, and high reflectivity. It has a tensile strength of around 60–100 MPa and a Brinell hardness of about 20 HB. Although non-heat-treatable, Aluminium 1050 can be cold worked and annealed to improve strength and formability, making it suitable for lightweight and non-slip surface applications.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24
Thickness : 0.2-50
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Liza Aluminium based in Manila, Philippines is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 1050 Chequered Plates to meet specific project needs. Our team at Liza Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@lizaaluminium.com
Aluminium 1050 Chequered Plates are widely used due to their durability, lightweight nature, and anti-slip surface. They are commonly used in flooring, stair treads, walkways, and ramps for both industrial and commercial spaces. In transportation, they are ideal for vehicle flooring, truck beds, and bus interiors. In architecture, they serve as decorative wall panels and protective coverings. Additionally, these plates are used in refrigeration, packaging, and marine industries where corrosion resistance, low maintenance, and long-lasting performance are essential.
